API CAST STEEL FLOATING BALL VALVES Home - Product -API Cast steel valve

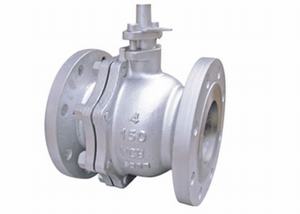

API CAST STEEL FLOATING BALL VALVES   Series:API Cast steel valves
API CAST STEEL FLOATING BALL VALVES

Delivery program/Technical specifications


Material : WCB.WCC.LCB.CF8.CF8M.CF3.CF8C. CN7M

Dimension: 2" -- 36 "


Pressure class: Class150LB--1500LB

Features: Design and manufacture: API 6D, ASME B 16.34
  Floating Ball 2PC body
  Pressure-Temperature Ratings ASME B 16.34
  Face to Face to ASME B 16. 10,API.6D
  Flange(RF or RTJ) conform to ASME B 16.5
  Test &. Inspection conforms to API 598 API6D
  PTFE/RPTFE seated
