Material : WCB.WCC.LCB.CF8.CF8M.CF3.CF8C. CN7M
Dimension: 2" -- 30"
Pressure class: Class150LB--1500LB
Features: Design and manufacture: ANSIB16.34, API6D, BS1868

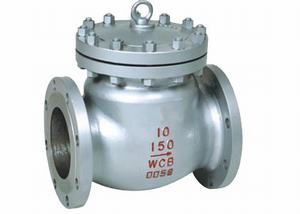

Bolted cover, swing type disc
Pressure-Temperature Ratings ASME B 16.34
Face to Face to ANSI B16.10, API6D
Flange(RF or RTJ) conform to ASME B 16.5, Butt welded end: ANSI B16.25
Test &. Inspection conforms to API 598 API6D
