API TRUNNION BALL VALVE Home - Product -API Cast steel valve

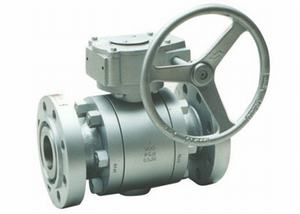

API TRUNNION BALL VALVE   Series:API Cast steel valves
API RS GATE VALVE

Delivery program/Technical specifications


Material : WCB, A105, F11, F22, LF2, 304, 304L, 316L, 316L

Dimension: 2" -- 40"


Pressure class: Class150LB--1500LB

Features: Design and manufacture: ANSI B16.34 / API6D / BS5351
  Fire safe: API 607
  Anti static: API 608
  Flange(RF or RTJ) conform to ASME B 16.5
  Pressure-Temperature Ratings ASME B16.34,BS5351
  Face to Face to ASMEB 16.10, API6D
  3PC Flanged Forged Trunnion Mounted Ball Valve,
  Test &. Inspection conforms to API598, API6D
  Hand wheel, Gear, Pneumatic, Electric Actuator.
