FORGED STEEL Y STRAINER Home - Product - Forged steel valve

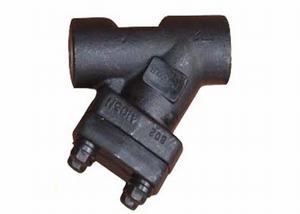

FORGED STEEL Y STRAINER   Series:Forged steel valves

Delivery program/Technical specifications

Material : ASTM A105, F304, F304L, F316, F316L, F11, etc.

Dimension: DN 15 - DN 50 (1/2" -- 2 ")

Pressure class: Class 800, Class 900, Class 1500

Features: Design and manufacture: API602
  Socket-weld dimensions: ASME B16.11
  End threads dimensions: ASME B1.20.1
  Pressure-temperature rating: ASME B16.34
  Temperature: -29 - +121 Degree.
  Length to MSS SP-84
  Inspection and test: API598
